Push Button Switch Multi-functional Handheld Shower

Market positioning and design philosophy

1.Why is it a "circular large panel"?

In high-end bathroom spaces, circular elements symbolize completeness and inclusiveness. Compared to square Push Button Switch Multi-functional Handheld Shower , circular top sprays can more naturally integrate into various decoration styles - from minimalist modern to classic European - without creating visual conflicts. The core value of "large panels" (usually referring to diameters of 20cm to 31cm or more) lies in the physical level of air pressurization and coverage area.

For customers, choosing a circular large panel is not just for aesthetics, but also to address specific pain points:

Water pressure adaptability: The large panel uses air injection technology to form full water droplets through airflow compensation, even in high-rise hotels or old renovation projects with unstable water pressure, ensuring a sense of water pressure.

Installation fault tolerance: Circular structures have relatively lenient accuracy requirements for reserved holes in ceilings or walls, reducing rework costs during installation.

2.Evolution of Interaction Logic: From "Knobs" to "Buttons"

Traditional shower control often requires users to repeatedly rotate and adjust the water temperature. The high-end Push Button Switch Multi-functional Handheld Shower that adopt "button based" interaction (such as the trend led by brands like Gaoyi) simplify the operation to "one click water discharge" or "one click switching".

Anti scald safety: In hotel settings, misoperation is an important source of customer complaints. Button style design usually combines a safety locking mechanism at 38 ℃ or 43 ℃ to prevent children or the elderly from accidentally touching and causing burns.

Traffic management: For engineering parties, water conservation means a long-term reduction in operating costs. The button type water separator can accurately control the water output, and with the water-saving large panel, it can achieve water saving of more than 30% while maintaining comfort.

Core technical parameters and material analysis

1.Materials and Surface Treatment

Main material: SUS304 stainless steel or high-quality ABS engineering plastic is recommended for the top spray main body. Stainless steel material has the characteristics of corrosion resistance, heat resistance, acid and alkali resistance, and the surface brushing treatment is not easy to leave fingerprints, suitable for high-end hotel projects; ABS material has the advantages of lightweight and controllable cost, making it suitable for large-scale decoration of houses.

Surface coating: Push Button Switch Multi-functional Handheld Shower High end suppliers should provide products treated with PVD (Physical Vapor Deposition) technology. Compared to ordinary electroplating, PVD technology is not only environmentally friendly and pollution-free, but also has stronger corrosion resistance (salt spray testing should reach no rust spots for more than 24 hours), ensuring that it remains as new for ten years in humid environments.

Nozzle technology: TPR (thermoplastic rubber) soft silicone nozzle is used. B-end procurement must pay attention to "ease of cleaning". TPR material allows users or cleaning personnel to remove scale directly by hand, greatly reducing the frequency of regular descaling maintenance for hotel engineering departments.

2.Core valve core and button structure

Button life test: Qualified engineering grade products should have their button mechanical life certified according to ISO 9001 or equivalent standards, with a requirement of more than 10000 fault free press tests.

Constant temperature technology: For concealed or high-end products, wax sensitive components (Gaoyi Teshida technology) or memory alloy constant temperature valve cores should be equipped internally. This type of valve core can quickly respond within 0.2 seconds when there are fluctuations in water supply pressure and temperature, stabilizing the outlet water temperature and solving the complaint problem of sudden cold and hot water usage in hotels.

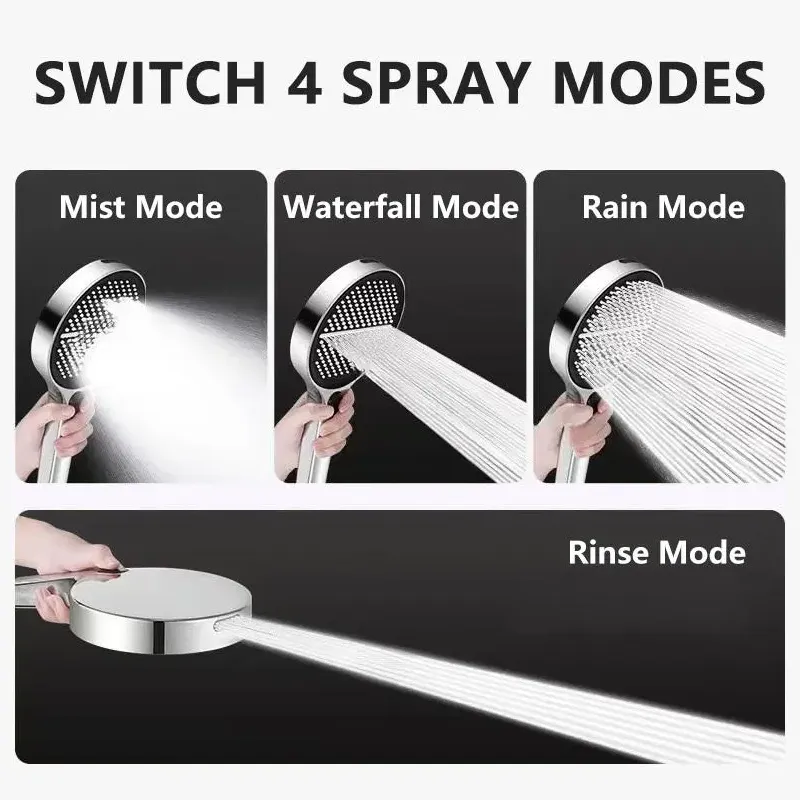

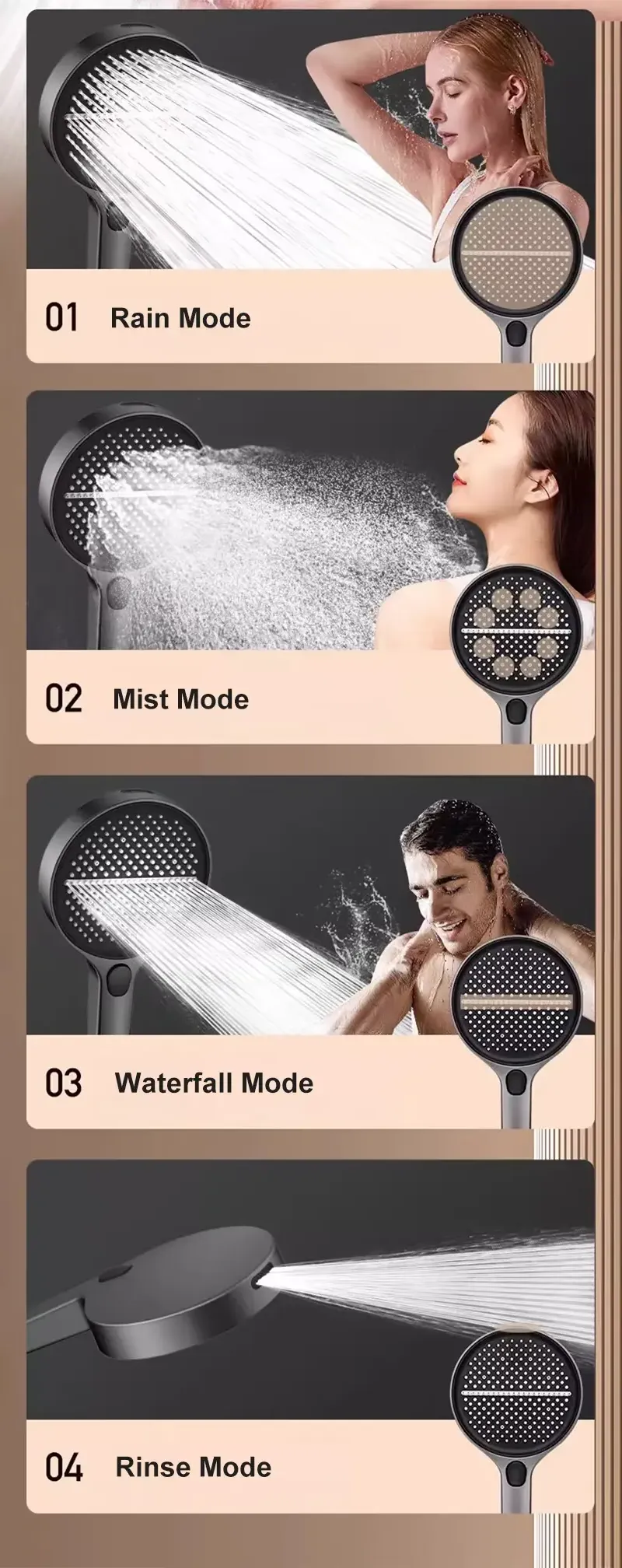

3.Water Discharge Mode and Experience

Rain mode: The core of the large panel is "coverage". Technical indicators should focus on nozzle distribution density and droplet size. The ideal large panel Push Button Switch Multi-functional Handheld Shower  should provide a "filling rain shower" mode, with a water column diameter controlled between 0.3mm-0.5mm, simulating natural rainfall, suitable for relaxation and sleep assistance.

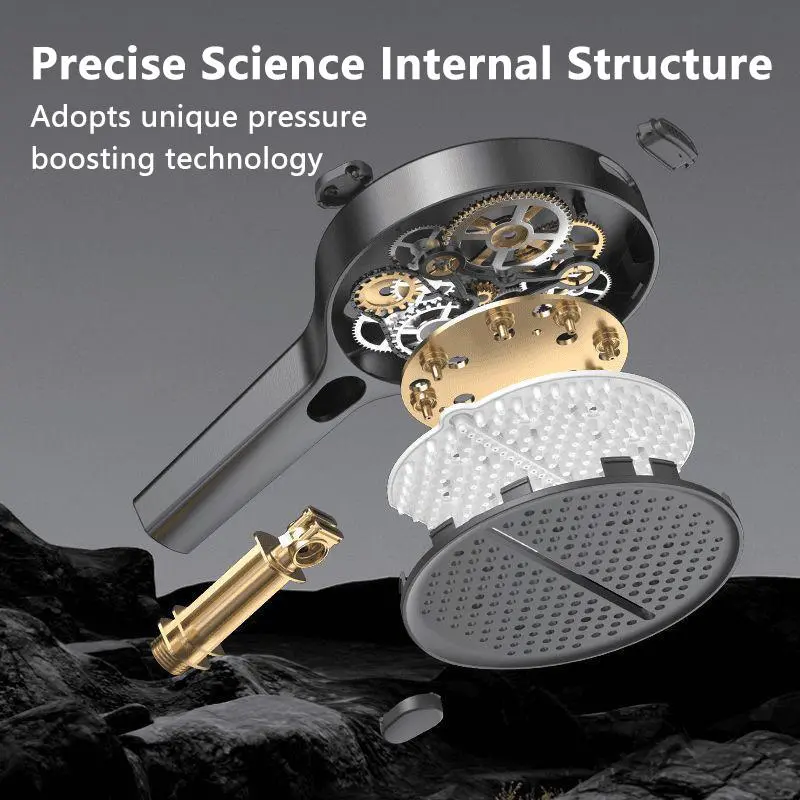

Boosting mode: For scenarios where water pressure is limited, some products have built-in air boosting technology. By inhaling air and mixing it with water through the Venturi effect, water droplets become more impactful and suitable for washing shower gel or muscle massage.

Guidelines for Avoiding Pitfalls and Adding Value

1.Compliance and Certification

Authoritative certification: Suppliers are required to provide endorsements such as ICC-ES, Department of Energy, or CSC (China Water Conservation Certification). For projects exported to North America, it is necessary to ensure that the products comply with the ASME A112.18.1 standard; Exporting to Europe must comply with the EN 1112 standard.

Environmental compliance: With the advancement of the "dual carbon" goal, more and more construction projects require LEED certification. Choosing suppliers with CAL Green compliance statements and offering low lead copper or lead-free processes can help your project earn more green building points.

2. Delivery cycle and customization

Transparency of delivery time: The biggest pain point in engineering procurement is the lack of transparency in delivery time. Professional B2B suppliers should clearly distinguish between the delivery cycles of "standard products" and "customized products". For example, standard colors (chrome plating) are usually available in stock, with MOQ (minimum order quantity) as low as 10-50 sets and delivery cycles controlled within 15-25 days; For special colors (matte black, brushed gold) or customized logos, an additional production cycle of 30-45 days is required.

Customization service: Check if the supplier provides structured customization. Not only laser marking, but also a combination of handle configuration (single/double handle), installation method (exposed/concealed), and outlet form (top spray/handheld/bottom outlet). Mature suppliers will break down complex customization logic into optional options, reducing communication costs.

3. Supply Chain Stability

Manufacturing capability: Avoid choosing pure traders. Priority should be given to factories with CNC precision machining, automatic polishing production lines, and independent electroplating cooperation parks. Data shows that suppliers with annual online revenue exceeding $290000 and repeat purchase rates exceeding 40% often have stronger operational stability.

Quality management: Require suppliers to present ISO 9001 quality management system certification and clarify their quality inspection process, including but not limited to "1.6MPa high-pressure water test", "salt spray test", and "surface roughness testing".
